Beam Clamps
Beam clamps stocked by Toco Lifting in suspension eye plate type and screw with eye type configurations, geared or ungeared, capacity 1 to 10 ton with 20 ton on request. Adjustable to beam flange widths from 50 to 500 mm for vertical overhead lifting points. Conformance Inspection Certificate supplied.
Description
Beam clamps at a glance
| Configurations | Pin type and eye type |
|---|---|
| Capacity | 1 ton to 10 ton standard, 20 ton on request |
| Beam flange | 50 to 180 mm at 1 ton, up to 200 to 500 mm at 10 ton |
| Certificate | Conformance Inspection Certificate, OEM Certificate on request |
Supplied by Toco Lifting, lifting, lashing and rigging supplier since 2002.
Toco Lifting (Pty) Ltd supplies beam clamps from 1 to 10 ton across South Africa and SADC, with 20 ton on request, in pin type and eye type configurations. A beam clamp clamps to a steel beam to give an overhead lifting point for vertical lifts, and is supplied with a Conformance Inspection Certificate.
Need a beam clamp for a specific capacity or beam profile? Call 011 345 8800 or email sales@toco.co.za.
Toco Lifting is approved by the Department of Labour to undertake Conformance Inspections and Performance Testing (Load Testing) per approved SABS, SANS, or relevant OEM Standard. Toco has supplied lifting, lashing and rigging equipment since 2002, operating from a Germiston head office and a Cape Town branch. A beam clamp is lifting tackle; it is supplied as conforming product and certified on enquiry.
What beam clamp configurations does Toco supply?
Toco supplies beam clamps in two configurations: the pin type and the eye type. Both are available across the standard capacity range. Toco confirms the right configuration for the beam and the lift on enquiry.
What capacity beam clamps does Toco supply?
Toco’s standard beam clamp range covers 1 ton to 10 ton, with a 20 ton capacity available on request. The clamp is adjustable to the beam flange, from 50 to 180 mm at 1 ton up to 200 to 500 mm at 10 ton.

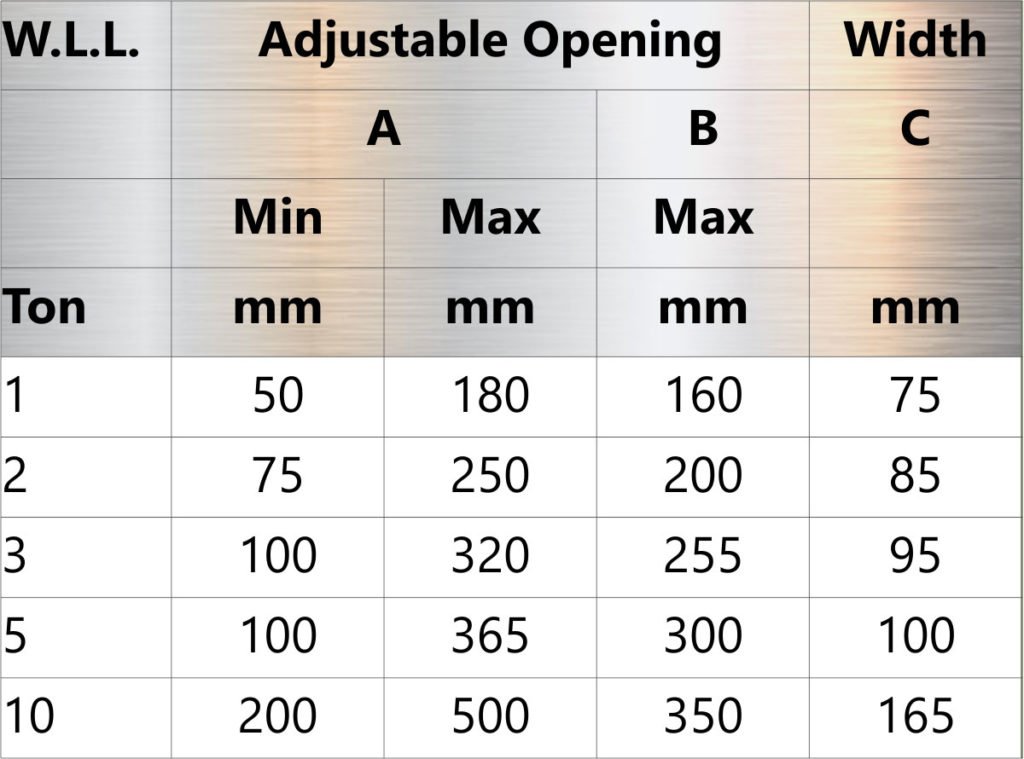

| Capacity | Beam flange width (adjustable opening) |
|---|---|
| 1 ton | 50 to 180 mm |
| 10 ton | 200 to 500 mm |
Capacities between 1 and 10 ton, the 20 ton clamp and other beam profiles are confirmed to the beam flange width on enquiry. The rated capacity must match or exceed the load, and the beam must be able to carry the load through the clamp position.
Are beam clamps tested and certified?
A beam clamp is lifting tackle rather than a lifting machine, so it cannot suspend or halt motion automatically once input energy stops. Where a certificate is required, a beam clamp is supplied with a Conformance Inspection Certificate, and an OEM Certificate can be provided on request for imported stock where a manufacturing trace is needed.
Beam clamps are not within the five equipment categories of Toco’s LME 008 testing scope; LME 008 applies to Toco at the corporate-registration level. Like all lifting tackle, a beam clamp in service should be inspected at regular intervals and kept in good condition. Toco supplies the correct certification with the product on enquiry, and can inspect lifting tackle as part of its testing and certification service.
Which industries use beam clamps?
Beam clamps are used wherever a temporary overhead lifting point is needed on a steel beam. Typical settings include construction, heavy engineering and daily preventative maintenance, among many other heavy industrial applications. Toco does not limit who it supplies; if your site needs a quick-fit lifting point on a beam, Toco can supply the clamp to suit.
Beam clamps – frequently asked questions
What capacity beam clamps does Toco supply?
Toco’s standard range is 1 ton to 10 ton, with 20 ton available on request. Clamps come in pin type and eye type configurations. The rated capacity must match or exceed the load being lifted.
Can a beam clamp be used for an angled lift?
No. A standard beam clamp is designed for vertical (straight) lifts only.
What certificate is supplied with a beam clamp?
A beam clamp is supplied with a Conformance Inspection Certificate where a certificate is required, with an OEM Certificate available on request for imported stock that needs a manufacturing trace. Beam clamps are lifting tackle and are not within Toco’s LME 008 testing categories.
Can Toco supply the chain block as well as the beam clamp?
Yes. Toco supplies Vital® chain blocks and lever hoists alongside beam clamps, so a complete overhead lifting set-up can be specified from a single supplier. Toco also tests and certifies chain blocks and lever hoists in-house under its LME 008 registration.
Speak to Toco Lifting about beam clamps and overhead lifting points. Call 011 345 8800, email sales@toco.co.za, or request a quote online.
